PID Temprature Controller ITC-106

PID Temperature Controllers ITC-106

$0.00 - $0.00
$0.00
$35.99
$35.99 - $35.99
$35.99

Preview

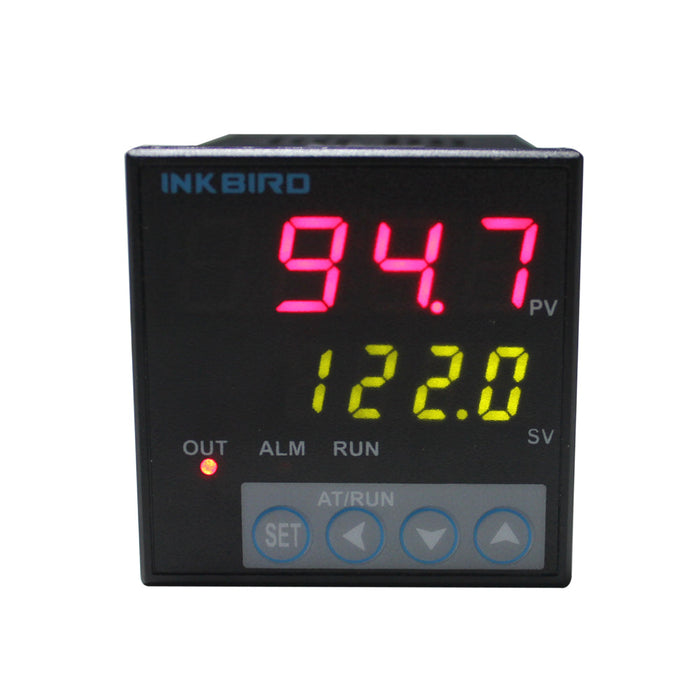

The INKBIRD ITC-106 series has ITC-106VH and ITC-106RH. ITC-106VH has one SSR output+ one relay alarm output. ITC-106RH has one relay output+ one relay alarm output. It belongs to the household controller, suitable for slow cooking, home brewing and etc.

Size: ITC-106VH
Ship From: Factory In China
Buy on Amazon

Product features

Multiple Thermocouples and Resistance Sensors: Support Multiple Thermocouples and Resistance Sensors (K, S, Wre, T, E, J, B, N, CU50, PT100) Wide Controlling Range: -50～1300℃ (K sensor) Accuracy of Displaying and Controlling: High Accuracy of Displaying and Controlling 0.1℃, Accuracy of Measurement: ±0.2%FS

PID and ON/OFF Control Mode, High Standard Self-adjusting Function Multiple Outputs and Alarm Modes Build-in Adjustable Digital Filter Reduce Interference Self-adjusting Function and Intelligent Control: The Self-adjusting Function and Intelligent Control of the Instrument Ensure the Long-term Stability

High Luminance, 0.39” height LED display, Anti-glare panel Built-in Switch Power Supply, Wide Voltage Range and Low-power Consumption​ Support reading with Centigrade or Fahrenheit unit

Available models:

  • ITC-106VH --- One SSR output + One Relay Alarm Output; AC100-240V.
  • ITC-106RH --- One Relay output + One Relay Alarm Output; AC100-240V.


Main Features:

  • Front Panel Dimension: DIN (48WmmX48Lmm), Cutout size: 45x45mm
  • Support Multiple Thermocouples and Resistance Sensors (K, S, Wre, T, E, J, B, N, CU50, PT100)
  • Power Supply Voltage:    AC 100-240V ±10% 50/60Hz
  • Main Output： Voltage Pulses Output (ITC-106VH):  DC 12V, 30mA;
  • Main Output： Relay Contact Output (ITC-106RH):  AC250V 3A (Resistive load) ON/NC.
  • Alarm 1 AC250V 3A (Resistive load) ON/NC
  •  High Accuracy of Displaying and Controlling 0.1ºC, Accuracy of Measurement ±0.2%FS
  •  PID and ON/OFF Control Mode, High Standard Self-adjusting Function
  •  Multiple Outputs and Alarm Modes
  •  Build-in Adjustable Digital Filter Reduce Interference
  •  The Self-adjusting Function and Intelligent Control of the Instrument Ensure the Long-term Stability
  •  High Luminance, 0.39” height LED display, Anti-glare panel
  •  Built-in Switch Power Supply, Wide Voltage Range and Low-power Consumption.
